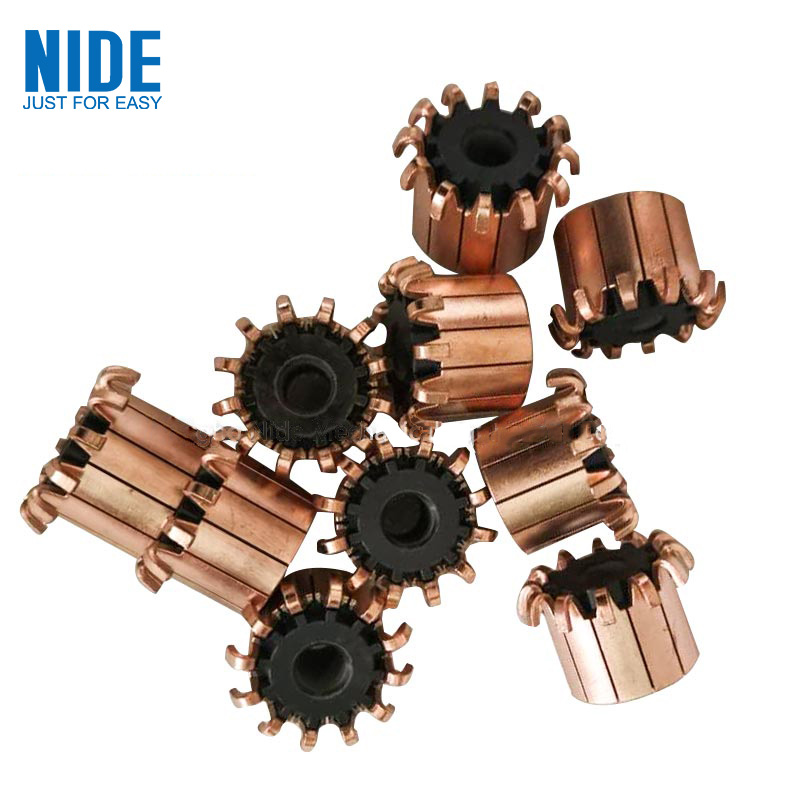

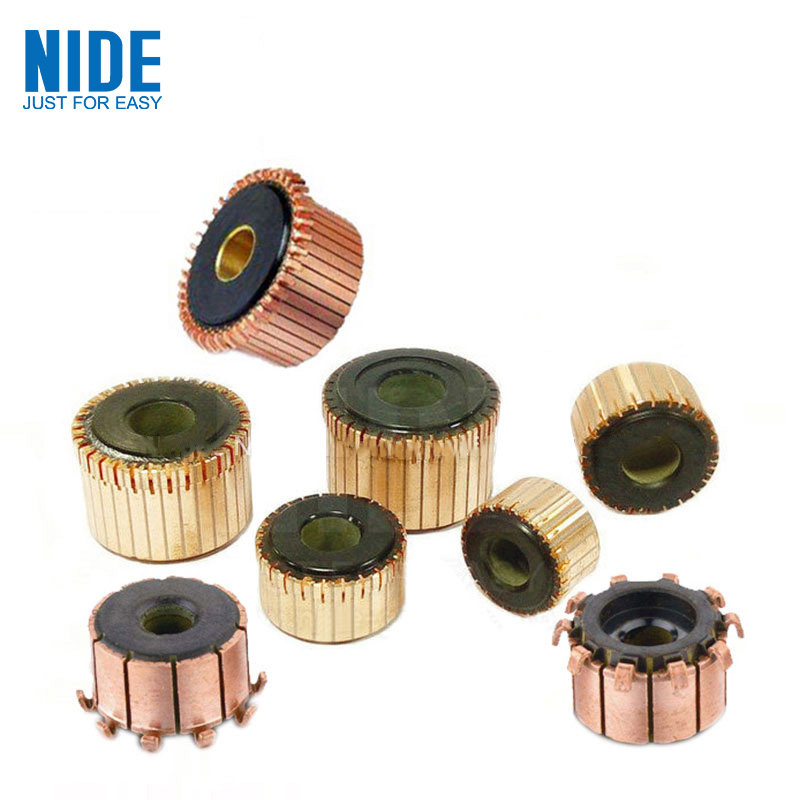

Isuduwaha Jig Saw

Commutator-ka waxaa loo isticmaalaa matoorka Jig Saw. NIDE waa shirkad soo saarta gawaarida iyo alaab-qeybiyaha xirfadleyda ah ee Shiinaha. Warshadayada wax soo saarka wadareed waxay dabooshaa dhul ka badan 5,000 acres. Waxaan leenahay khibrad dhoofinta gawaarida gawaarida oo dhameystiran waxaanan soo saareynaa noocyo kala duwan oo rakaab ah, oo ay ku jiraan nooca Hook, nooca kor u kaca, nooca qolofka, nooca diyaaradda, Waxaad ku kalsoonaan kartaa inaad ka soo iibsato Commutator For Jig Saw warshadeena waxaanan ku siin doonaa iibka ugu fiican adeegga iyo gaarsiinta waqtiga.

Soo dir weydiin

Sharaxaada Alaabta

Isuduwaha Jig Saw

1.Hordhaca Alaabta

Gaadhigan waxaa si gaar ah loogu talagalay matoorada jig-sawirka, iyadoo la isticmaalayo qalab tayo sare leh, leh waxqabad wanaagsan, buuq yar, iyo nolol adeeg oo dheer.

2.Parameterka Alaabta (Specification)

Qalabka	0.03% ama 0.08% naxaas bir ah ama la habeeyey
Cabirka	La habeeyay
Nooca isu-socodka	Nooca Hook / Nooca kor u qaadka
Codsiga	Codso warshadaha baabuurta, qalabka korontada, qalabka guriga, iyo matoorada kale
Xidhmada	Ku habboon gaadiidka dhulka iyo badda
Awood wax soo saar	1000000pcs/bishii

Qaabka No.	OD (mm)	Aqoonsiga (mm)	Wadarta dhererka (mm)	Dhererka Qaybta (mm)	Hook/Riser dia. (mm)	Baar No.
S-02001	37.5	Ï†13	24	20.5	38.5	32
S-03002	15.75	Ï†13	11.25	9.5	16	24
S-03003	24	Ï†9	17	14	25	24
S-03003B	24.5	Ï†10	17.5	14	25.5	24
S-03003C	24.5	Ï†10	17.5	14	25.5	24
S-02004	24	Ï†9	15	13	24.5	24
S-03004A	23.2	Ï†9	15	13	24	24
S-03005	24	Ï†9	17	14	25	24
S-03005A	24	Ï†9	17	14	25	24
S-03006	37.5	Ï†13	26	23	38.5	32
S-03007	25.5	Ï†10	17	14	26.5	24
S-03007B	25.5	Ï†10	17	14	26.5	24
S-03008	23.5	Ï†9	14	12	24	24
S-03009	24	Ï†9	16.6	14	29	24
DZQD-RZ32-010	28.5	Ï†12	17.5	16	34.3	24
S-03011	23.5	Ï†9	17.5	14	28	24
DZQD-RZ32-012	23.5	Ï†10	18	16.4	28.5	24
S-03013	23	Ï†8	16	14	23.5	24
S-03014	28.5	Ï†11	20	17	29.5	24
S-03015	22.5	Ï†9	17.5	17.2	30	10
S-03016	28	Ï†14	20	19.2	36.8	12
S-03016A	28	Ï†14.2	20	19.2	36.8	12
S-03017	28.5	Ï†9	17.5	15	29.5	24
S-03018	34.3	Ï†13	22	20.5	41.5	24
S-03019	24.5	Ï†10	17.5	14	25.5	24
S-03019A	24.5	Ï†10	17.5	14	25.5	24
S-03020	28.5	Ï†11	17	14	29.5	24
S-03021	20.5	Ï†10	18	13.5	30.5	12
QZQC-RZ12-022	20.5	Ï†10	17.8	13.5	26	12
S-03024	40.4	Ï†13	24	20	42	50
S-03025	23.2	Ï†8	17.5	17	30	12
QZQC-RZ32-026	20.2	Ï†8	14.6	14.1	25	16
QZQC-RZ32-026A	20.2	Ï†8	14.6	14.1	25.5	16
QZQC-RZ12-027	18.9	Ï†8	14.5	12.8	24	12
S-03028	15.5	Ï†7	11.4	11.7	20	9
S-03030	22.5	Ï†9.2	18	17.7	30.6	10
S-03031	22.5	Ï†12	21	20.5	30.5	10
S-03032	28.5	Ï†12	17.5	14.5	29.5	24
S-03033	30	Ï†10	20	17	35.5	24
S-03033A	30	Ï†11	21	18	36	24
S-03033B	30	Ï†11	21	18.5	36	24
S-03033C	30	Ï†11	21	18.5	36	24
JZQC-RZ32-037	22	Ï†8	16	14.2	27	16
S-03038	35.4	Ï†14	42.5	38	48	23
S-03038A	35.4	Ï†14	42.5	38	48	23
S-03044	22.5	Ï†10	17.5	17	28.5	10
S-03045	35.5	Ï†15.75	23.5	20	46	19
S-03046A	37.5	Ï†14	42	38	49.5	23
S-03046B	37.5	Ï†14	42	38	49.5	23
S-03047	45	Ï†15.5	50	44.4	62	21
S-03048	34	Ï†10.2	38.5	34.5	46.5	23
S-03050	15	Ï†5	16.5	15.5	20	12

3.Product Feature iyo Codsiga

Commutator-ka waxaa si weyn loogu isticmaalaa warshado badan, sida Jig Saw, qalabka korontada, warshadaha baabuurta, wiishashka daaqadaha, laydhka korontada iwm.

4.Faahfaahinta Alaabta

Haddii moodelladayada Commutator-ka ee jira aysan kugu habboonayn, waxaan sidoo kale horumarin karnaa qalabayn cusub iyadoo loo eegayo sawirkaaga iyo muunadahaaga.
